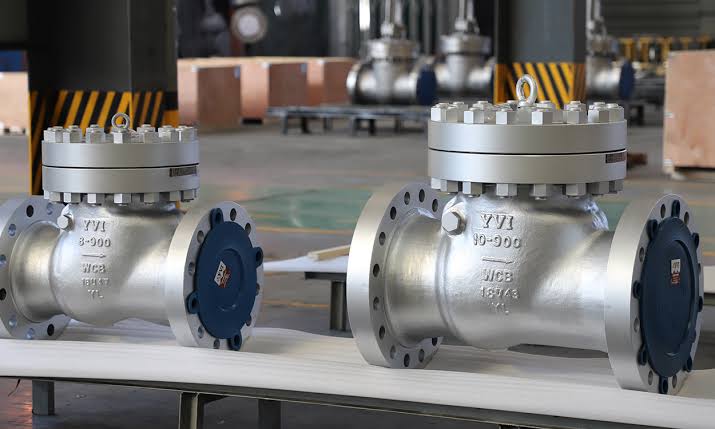

Heavy-duty bolted cover swing check valve engineered for high-pressure industrial pipeline service.
6D Swing Check Valves
Designed to prevent reverse flow automatically, featuring a bolted cover and precision-machined disc and seat interface to guarantee tight shut-off under high pressure.
Key Features:
- Swing Check Valve with bolted cover.
- The disc and seat is precision machined for tight shut off in reverse flow direction.
Technical Specifications:
Body Material: Carbon Steel / Stainless steel / Other alloys
Disc Material: Carbon steel / Stainless steel / Other alloys
Seal Material: METAL / VITON / EPDM / HNBR
Size Range: 50mm to 600mm
End Connection: Flanges Matches ASME B16.5
Pressure Class: 150, 300, 600, 900 (up to 450mm), 1500 (up to 300mm)
Face to Face: ASME B16.10
Design Standard: ASME B16.34
Testing Standard: API 598
Standard swing check valve configuration for general process lines and liquid applications.
Swing Check Valves
Reliable industrial check valves designed to prevent backflow with minimal pressure drop across commercial and industrial fluid networks.
Key Features:
- Swing Check Valve with bolted cover.
- The disc and seat is precision machined for tight shut off in reverse flow direction.
Technical Specifications:
Body Material: Carbon Steel / Stainless steel / Other alloys
Seat Material: METAL / VITON / EPDM / HNBR
Size Range: 50mm to 600mm
End Connection: Flanged to ANSI B16.5
Pressure Class: 150, 300, 600
Face to Face: ASME B16.10
Design Standard: ASME B16.34
Testing Standard: API 598
